Vidiotbox User Guide - System/Form Edition

01

Wake The Face

Portrait orientation. USB at the bottom. Magnetic cap at the top. Simple rules, large consequences.

Action	Result
Remove magnetic cap	Vidiotbox turns on.
Place cap back on top	Battery is physically disconnected.
Remove cap, then plug in USB	Battery can charge.

Important: the cap must be off before USB charging can work.

Startup setup portal

SETUP WIFI
vidiotbox-XXXX
<password>
192.168.4.1

The setup access point is temporary. It shuts down after about 30 seconds of no client activity.

02

Touch The Mood Map

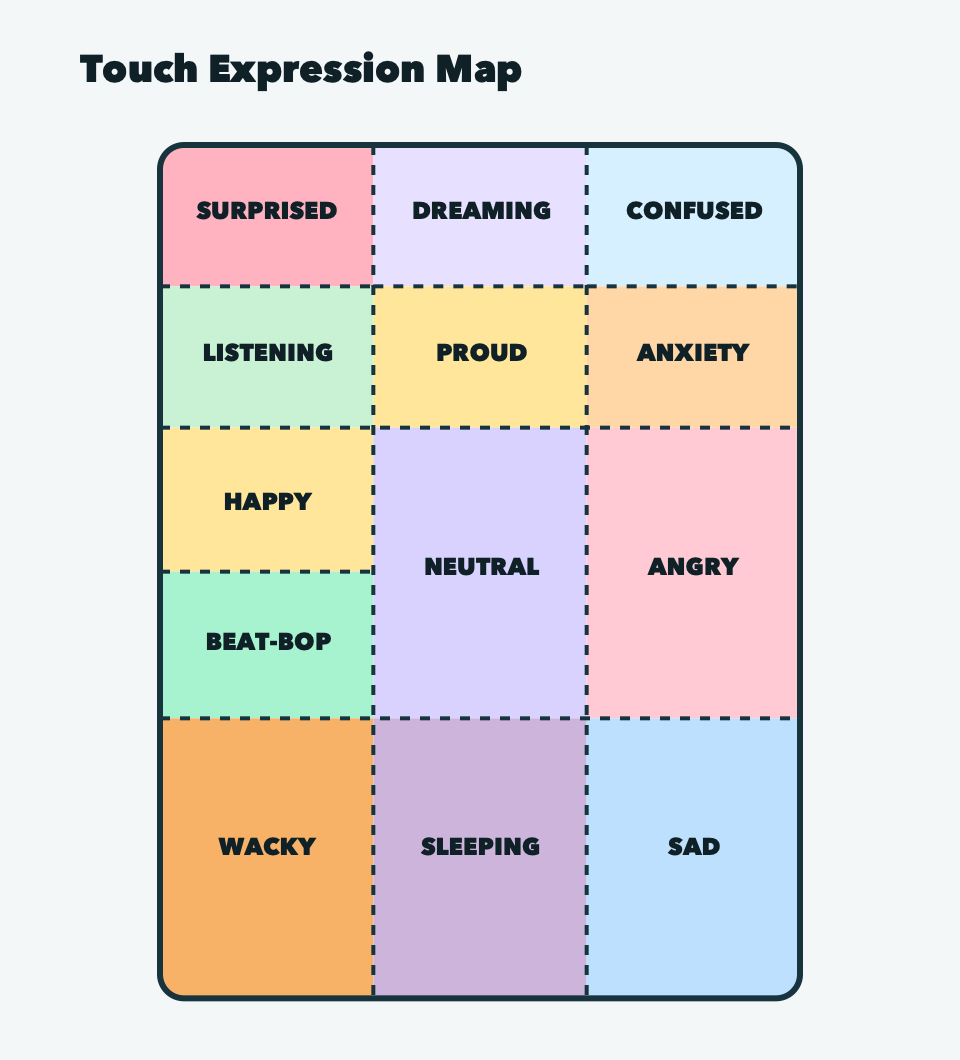

Tap one of the 13 screen regions. The selected face appears immediately, then holds briefly after release.

Zone	Expression	Tendency
Top far left	SURPRISED	Playful
Top center	DREAMING	Dreamy / idle
Top far right	CONFUSED	Curious-friendly
Upper row	LISTENING, PROUD, ANXIETY	Curious / positive / curious
Middle row	HAPPY, BEAT-BOP, NEUTRAL, ANGRY	Playful / beat face / calm / annoyed
Bottom row	WACKY, SLEEPING, SAD	Playful / sleepy / curious

LOVING and SCARY are automatic-only expressions. They appear in moods, not direct touch zones.

03

Expression Index

The black reference-sheet backgrounds have been removed so the faces can work as signs, warnings, and little emotional punctuation marks.

NEUTRAL

HAPPY

BEAT-BOP

ANGRY

SURPRISED

LOVING

SCARY

SAD

SLEEPING

WACKY

CONFUSED

ANXIETY

PROUD

DREAMING

LISTENING

LOVING + SCARY
System-called only. They do not have direct touch zones.

04

Hidden Holds

Hold actions are time-based. The spot under your finger does not matter once the hold begins.

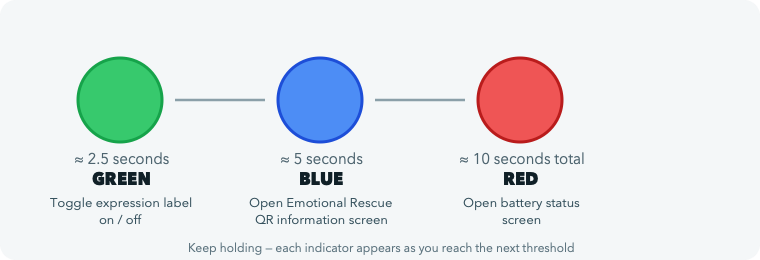

Hold time	Result
Tap and release	Selected expression shows immediately.
About 2.5 seconds	Expression labels toggle on or off.
About 5 seconds	Emotional Rescue QR/credit screen opens.
About 10 seconds total	Battery status screen opens.

05

Poke Patterns

Vidiotbox remembers recent taps. Rapid means about 2.5 seconds apart. Repeat means the same expression within about 6 seconds.

Pattern	Reaction
HAPPY, BEAT-BOP, WACKY, or SURPRISED	Queues PLAYFUL.
ANGRY	Shows ANGRY and queues ANNOYED.
DREAMING twice	Queues DREAMY.
SLEEPING twice while calm	Queues DREAMY.
PLAYFUL/ANNOYED alternation twice	Queues TORN.

Queued moods wait until the post-touch hold ends and Vidiotbox returns to idle.

06

Mood Parade

A mood is a compact expression sequence. Touch interrupts it. Sound can interrupt it when sound detection is allowed.

Mood	Trigger	Sequence
CALM	Default idle	NEUTRAL -> PROUD -> HAPPY -> NEUTRAL
CURIOUS	Soft sound or gentle touch	NEUTRAL -> LISTENING -> SURPRISED/PROUD/HAPPY -> LISTENING
PLAYFUL	HAPPY/BEAT-BOP/WACKY/SURPRISED touch or personality	HAPPY, WACKY, LOVING, SURPRISED, PROUD
ANNOYED	ANGRY, over-poking, very loud sound	ANGRY, SCARY, ANXIETY
SLEEPY	Long idle	NEUTRAL -> SAD -> SLEEPING
DREAMY	DREAMING twice or calm SLEEPING twice	DREAMING and SLEEPING alternate
TORN	Fast playful/annoyed alternation	WACKY and CONFUSED alternate

07

Idle / Sound

When Vidiotbox is idle, expression checks and sound checks share the stage. Random idle expressions happen on a timer; sound can start moods or configured sound events when the touch and cooldown gates are clear.

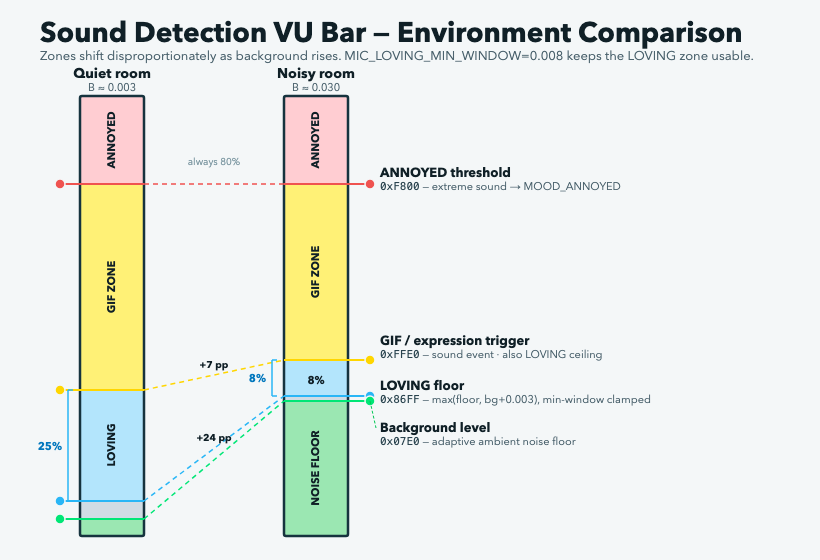

Green = background noise floor.

Blue = LOVING floor.

Yellow = GIF/image trigger.

Red = ANNOYED threshold. Very loud sounds win.

Idle random logic	Current behavior
Timer	`/faceimator/expr.txt` controls `check_every_ms`; default is 5000 ms, minimum is 1000 ms.
Chance	`play_probability_percent` decides whether the timer picks an idle expression on that check.
Weights	Each expression weight is 0-100. Weight 0 removes it from idle selection; higher weights make it more likely.
Audio filter	If idle expression audio is enabled and not muted, the random picker only uses expressions with matching idle audio files.
Current face	The picker avoids repeating the current expression when another eligible expression exists.
Mood priority	Active mood sequences block random idle expression changes until the mood ends or is interrupted.

Sound	Result
Quiet	Background adjusts.
Soft	CURIOUS can start while idle after the curious cooldown.
Sustained friendly	The LOW sound event can run after sound stays in the LOVING band for the configured window.
Strong	The MEDIUM sound event runs after the decision window unless the peak upgrades to HIGH.
Very loud	The HIGH sound event runs, or personality may redirect the reaction into PLAYFUL.
During an idle mood	MEDIUM/HIGH sound interrupts the mood and runs the configured event.
Gated	Sound events pause during startup settle, image/GIF cooldown, active touch, post-touch cooldown, touch holds, and ANNOYED mood.

08

Setup Portal

Connect to the temporary startup Wi-Fi named vidiotbox-XXXX, then open http://192.168.4.1/.

Page	Use
`/config`	General config and brightness.
`/sound`	Microphone thresholds, timing, and VU meter.
`/events`	Low, medium, and high sound-event behavior.
`/audio`	Idle/random audio, uploads, per-file volume, and deletion.
`/personality`	Personality axes, derived behavior, and reset.
`/expr`	Idle expression probabilities.
`/gif`	GIF selection, upload, delete, and tint.
`/images`, `/images/edit`	Faceimator RGB565 image assets and message metadata.
`/info`, `/reboot`	Device info and restart.

09

Battery / Rest

Vidiotbox checks battery voltage after the startup grace period, then sleeps before the LiPo gets dangerously low.

State	Approximate value
Full	raw about 2445, about 4.2 V
Resume	raw 2100, about 3.4 V
Low warning	raw 2000, about 3.2 V
Flat reference	raw about 1560, about 2.7 V

Three consecutive low readings trigger the Charge Me warning and deep sleep. Charge-rest checks again every 15 minutes.

10

Personality

The personality file lives at /faceimator/personality.txt. It reflects recent behavior, then fades back toward neutral.

Axis	Low side	High side
Energy	Calmer, sleepier	More playful
Patience	Easier to annoy	More tolerant
Sociability	Slower sound reactions	Quicker curious reactions

To reset personality, open the setup portal, go to /personality, and use the reset button.

11

Charm Card

Action	Do this
Turn on	Remove the magnetic cap.
Turn off	Put the magnetic cap back on top.
Charge	Remove cap, connect USB to bottom port.
Pick a face	Tap a touch-map zone.
Open QR	Hold about 5 seconds.
Open battery	Keep holding about 10 seconds total.
